Model Cat : PT-417
| Description |
|---|
| BOD INCUBATOR for BOD testing, microbiology and low-temperature incubation. |
| Technical Specification | |
|---|---|
| Temperature | 5°C to 60°C, ±0.5°C, uniformity ±1°C, PT-100 sensor |
| Controller | PID with LED SV/PV display, auto-tuning |
| Construction | Double walled, SS 304 inner, MS powder-coated / SS 304 outer, acrylic inner door, LED light |
| Refrigeration | CFC-free compressor (R134a), axial fan, 250 W heater |
| Optional | RS485, data logger, alarms, IQ/OQ/PQ, NABL calibration |
| Models Available | ||||
|---|---|---|---|---|
| Size (mm) | Litre | Shelves | MS Body | SS 304 (GMP) |
| 825 x 505 x 415 | 173 | 2 | PT-417/05 | PT-417A/05 |
| 850 x 600 x 500 | 227 | 2 | PT-417/10 | PT-417A/10 |
| 880 x 550 x 550 | 283 | 3 | PT-417/15 | PT-417A/15 |
| 900 x 650 x 580 | 340 | 3 | PT-417/20 | PT-417A/20 |
Description

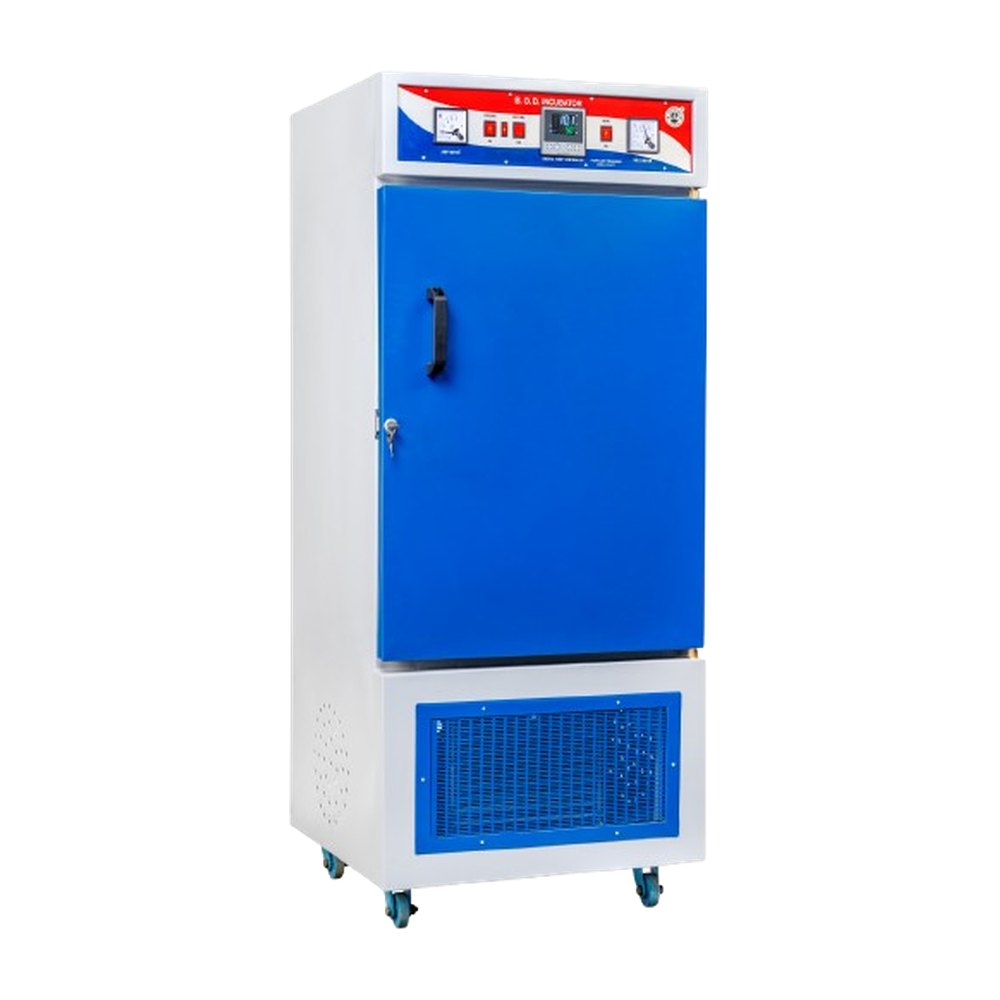

The PT-417 B.O.D. incubator from Popular Traders, Ambala holds samples at a precise temperature between 5°C and 60°C. It is built for BOD testing of water and wastewater, microbiology and any work that needs incubation below room temperature. A CFC-free compressor and a 250 W heater with PID control keep the chamber within ±0.5°C.
Key features
- Temperature range 5°C to 60°C, accuracy ±0.5°C, uniformity ±1°C
- PID controller with LED display of set and actual temperature, auto-tuning, PT-100 sensor
- CFC-free compressor (R134a) with axial fan for even air circulation
- Double-walled cabinet: SS 304 inner, MS powder-coated or SS 304 (GMP) outer
- Acrylic inner door to view samples without losing temperature; LED interior light
- Options: RS485 output, data logger, alarms, IQ/OQ/PQ, NABL calibration
Models available
- Size 825 x 505 x 415 mm – litres: 173, Shelves: 2, MS Body: PT-417/05, SS 304 (GMP): PT-417A/05
- Size 850 x 600 x 500 mm – litres: 227, Shelves: 2, MS Body: PT-417/10, SS 304 (GMP): PT-417A/10
- Size 880 x 550 x 550 mm – litres: 283, Shelves: 3, MS Body: PT-417/15, SS 304 (GMP): PT-417A/15
- Size 900 x 650 x 580 mm – litres: 340, Shelves: 3, MS Body: PT-417/20, SS 304 (GMP): PT-417A/20
Applications
- 5-day BOD testing in water and wastewater labs, ETPs and STPs
- Microbiology and food testing
- Seed germination and low-temperature storage of samples
- Pharmaceutical stability and QC labs
- University and research laboratories
Which model should I choose?
All four sizes (173 to 340 litres) come with an MS powder-coated body or an SS 304 body. Choose the SS 304 (PT-417A) models for GMP areas in pharmaceutical and food plants. For BOD testing with shaking, see the PT-420 BOD incubator with orbital shaker.
Made in India by Popular Traders
Popular Traders has made laboratory equipment in Ambala, Haryana since 1942. We are ISO 9001:2015 certified, ZED Silver certified, MSME registered and an approved supplier on GeM. IQ/OQ/PQ documentation and NABL calibration can be supplied for regulated pharmaceutical and food laboratories. Most models are dispatched within about 1 week of your order. Send us an enquiry for the price and warranty terms for the model you need. Custom sizes and OEM supply are available on request.
Frequently asked questions
What temperature range does the PT-417 BOD incubator cover?
It works from 5°C to 60°C with ±0.5°C accuracy and ±1°C uniformity.
Which refrigerant does it use?
It uses a CFC-free compressor with R134a refrigerant.
What sizes are available?
173, 227, 283 and 340 litres, each with an MS powder-coated or SS 304 body.
Is an SS 304 body available for GMP labs?
Yes. The PT-417A models have an SS 304 outer body for GMP areas.
Can you provide IQ/OQ/PQ and calibration?
Yes, IQ/OQ/PQ documentation and NABL calibration are available as options.
