Model Cat : PT-1025,1026

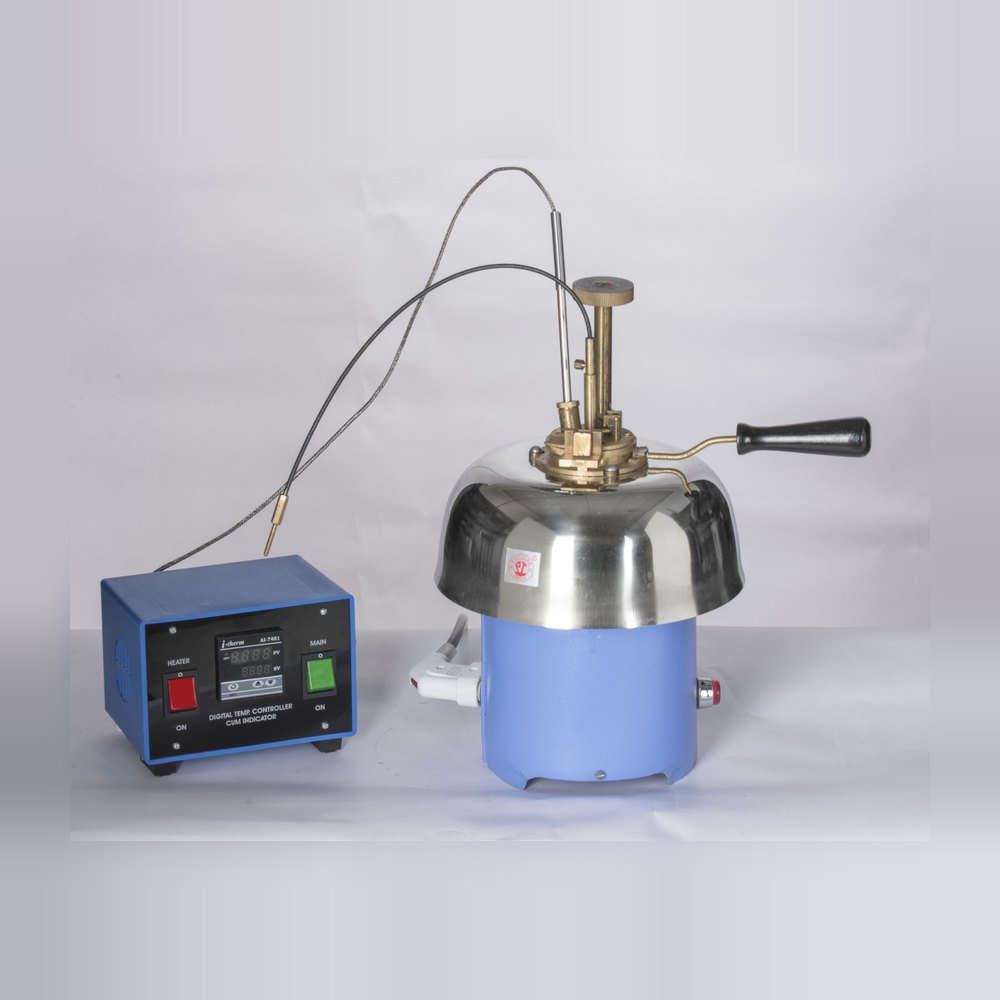

PT-1025 PENSKY MARTENS FLASH POINT APPARATUS The apparatus is made as per IP 34, ASTMD-93-58 T and IS 1448 (Part I) 1270 (P : 21) and IS 1203 – 1953 method B. The apparatus consists of brass test cup with handle emovable cup cover, with spring operated rotating shutter having piolet jet and stirrer with flexible shaft. The assembly rests in a air bath which is covered with dome shape metal top, the cup is fitted with insulated handle and locking arrangement near cup flange and the assembly is kept on round shape electric heater with temperature regulator. Suitable for operation on 220 volts 50 cycles AC circuits. With oil test jet, electrically heated with energy regulator control used for finding out flash point above 70°C and below 300°C.
| Cat.No | Description | |
|---|---|---|
| PT-1026 | Pensky martens Flash Point Apparatus with Digital Temperature Indicator and Controler | |
| OPTIONAL ACCESSORIES | ||
| PT-1025/05 | Low range thermometer with brass collar IP-15C | |
| PT-1025/10 | High range thermometer with brass collar IP-16C | |
| PT-1025/15 | Spare nichrome heating element. | |
Description
The PT-1025 Pensky-Martens flash point apparatus from Popular Traders, Ambala measures closed-cup flash points between 70°C and 300°C as per IP 34, ASTM D-93 and IS 1448 (Part I). It has a brass test cup, spring-operated rotating shutter and flexible-shaft stirrer.
Key features
- Closed cup as per IP 34, ASTM D-93 and IS 1448 (Part I)
- For flash points above 70°C and below 300°C
- Brass test cup with handle; cover with spring-operated rotating shutter, pilot jet and stirrer
- Air bath with dome-shaped metal top; insulated handle and locking
- Round electric heater with energy regulator, 220 V 50 Hz; oil test jet
Models available
- PT-1025: energy regulator control
- PT-1026: digital temperature indicator and controller
- PT-1025/05: low-range thermometer IP-15C
- PT-1025/10: high-range thermometer IP-16C
- PT-1025/15: spare nichrome heating element
Applications
- Flash point of diesel, lubricating oils and fuel oils
- Petroleum refineries and oil testing labs
- Lubricant and grease manufacturers
- Engineering colleges and petroleum research labs
Which model should I choose?
Choose the PT-1026 for digital temperature control. For flash points below 70°C use the Abel PT-1020.
Made in India by Popular Traders
Popular Traders has made laboratory equipment in Ambala, Haryana since 1942. We are ISO 9001:2015 certified, ZED Silver certified, MSME registered and an approved supplier on GeM. Most models are dispatched within about 1 week of your order. Send us an enquiry for the price and warranty terms for the model you need. Custom sizes and OEM supply are available on request.
Frequently asked questions
Which standards does the PT-1025 follow?
IP 34, ASTM D-93 and IS 1448 (Part I).
What flash-point range does it cover?
Above 70°C and below 300°C.
Is a digital model available?
Yes, the PT-1026 has a digital temperature indicator and controller.
Which thermometers are used?
IP-15C (low range) and IP-16C (high range).
Is the cup open or closed?
It is a closed-cup tester.
QUALITY & CERTIFICATIONS
ISO 9001:2015 certified • Registered on GeM • ZED certified • Make in India
