Model Cat : PT-480
| Description |
|---|
| RESEARCH POLARIMETER for optical rotation and sugar measurement in medical, pharma and chemical research. |
| Technical Specification | |
|---|---|
| Optics | Imported half-shade Nicol polariser and analyser |
| Scales | 100 mm circular scale 0–360° x 1°; sugar scale −30° to +130° ISS |
| Reading | Micrometer drum to 0.05° (3 min) and 0.1° ISS, illuminated scale |
| Supplied with | 200 mm polarimeter tube, sodium lamp with stand & transformer |
| HSN Code | 90275030 |
| Models Available | |
|---|---|
| Cat. No. | Description |
| PT-470 | Student polarimeter, 200 mm tube |
| PT-480 | Research polarimeter, 200 mm tube |
| PT-490 | Research polarimeter, 400 mm tube |
| PT-500 / PT-505 | Spare tubes 100, 200, 400 mm |
Description

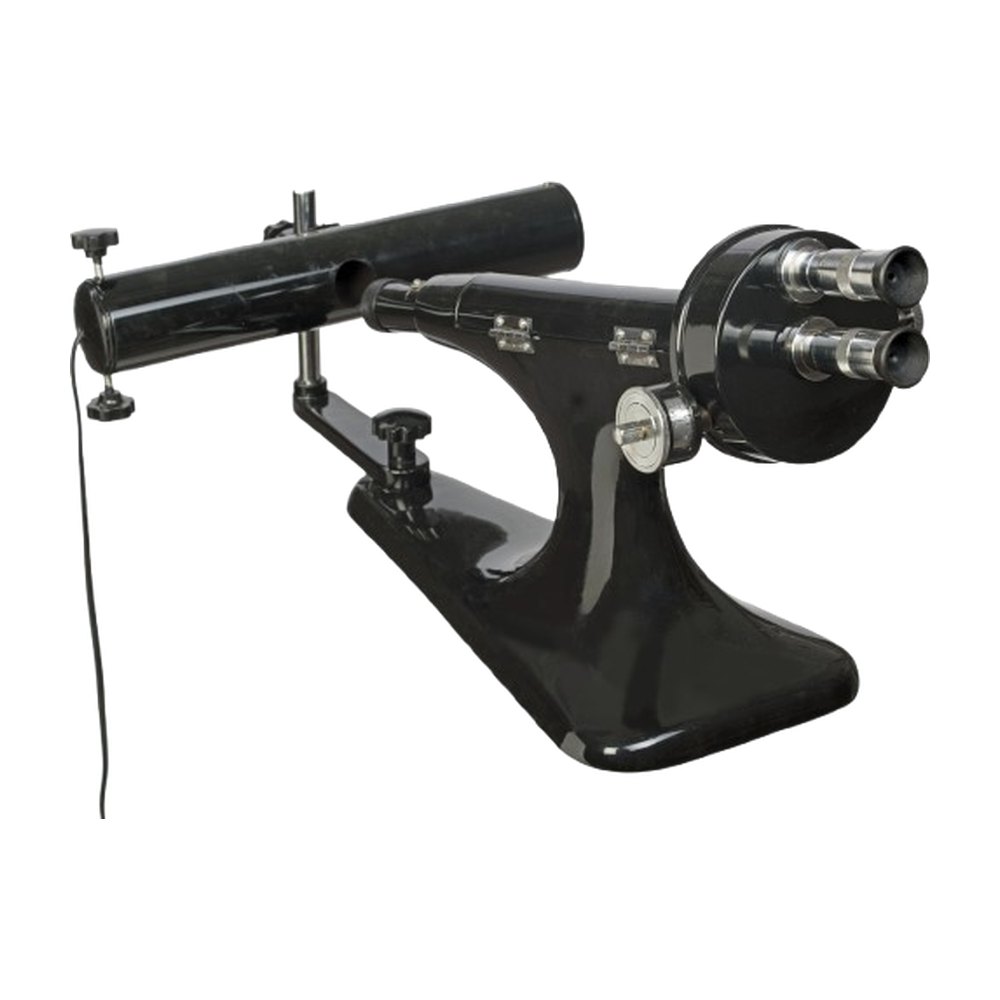

The PT-480 research polarimeter from Popular Traders, Ambala measures optical rotation and sugar content for medical, pharmaceutical and chemical research, using imported half-shade Nicol optics and a micrometer drum reading to 0.05°.
Key features
- Imported half-shade Nicol polariser and analyser
- 100 mm circular scale 0–360° x 1°; sugar scale −30° to +130° ISS
- Micrometer drum reading to 0.05° (3 min) and 0.1° ISS
- Illuminated scale
- Supplied with 200 mm tube and sodium lamp with stand and transformer
Models available
- PT-470: student polarimeter, 200 mm tube
- PT-480: research polarimeter, 200 mm tube
- PT-490: research polarimeter, 400 mm tube
- PT-500 / PT-505: spare tubes 100, 200, 400 mm
Applications
- Specific rotation of drugs and chemicals
- Sugar estimation
- Pharmaceutical QC and research labs
- University physics and chemistry labs
Which model should I choose?
Choose the PT-470 for teaching, the PT-480 for research, and the PT-490 with a 400 mm tube for samples with low rotation.
Made in India by Popular Traders
Popular Traders has made laboratory equipment in Ambala, Haryana since 1942. We are ISO 9001:2015 certified, ZED Silver certified, MSME registered and an approved supplier on GeM. Most models are dispatched within about 1 week of your order. Send us an enquiry for the price and warranty terms for the model you need. Custom sizes and OEM supply are available on request.
Frequently asked questions
How fine can the PT-480 read?
To 0.05° (3 minutes) on the micrometer drum.
What light source is supplied?
A sodium lamp with stand and transformer.
What tube length is supplied?
200 mm; the PT-490 comes with 400 mm.
Does it have a sugar scale?
Yes, −30° to +130° ISS.
Is a student model available?
Yes, the PT-470.
