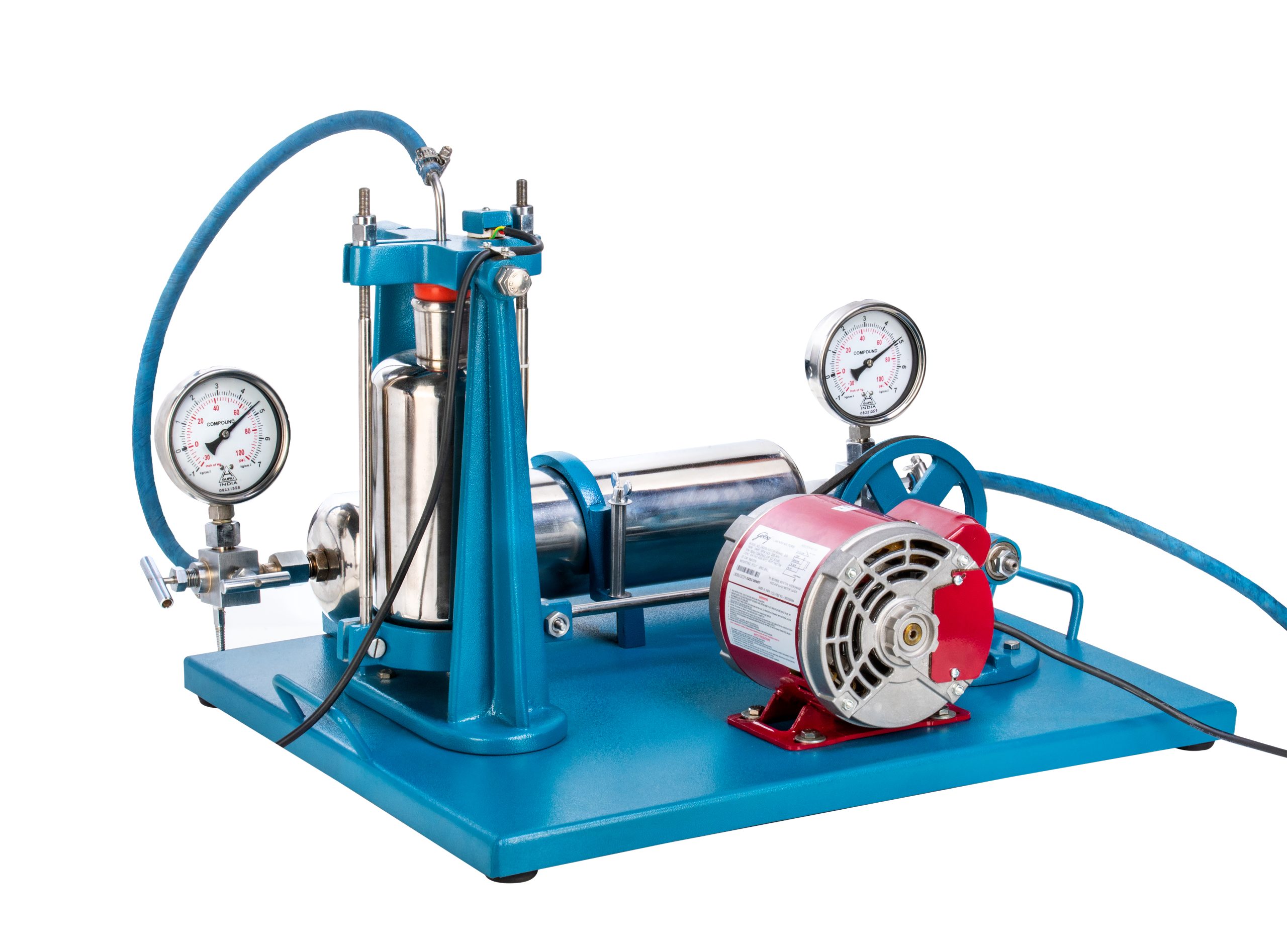

Catalytic Hydrogenation Apparatus PT-145

0.00

Model Cat : PT-145-155

Description

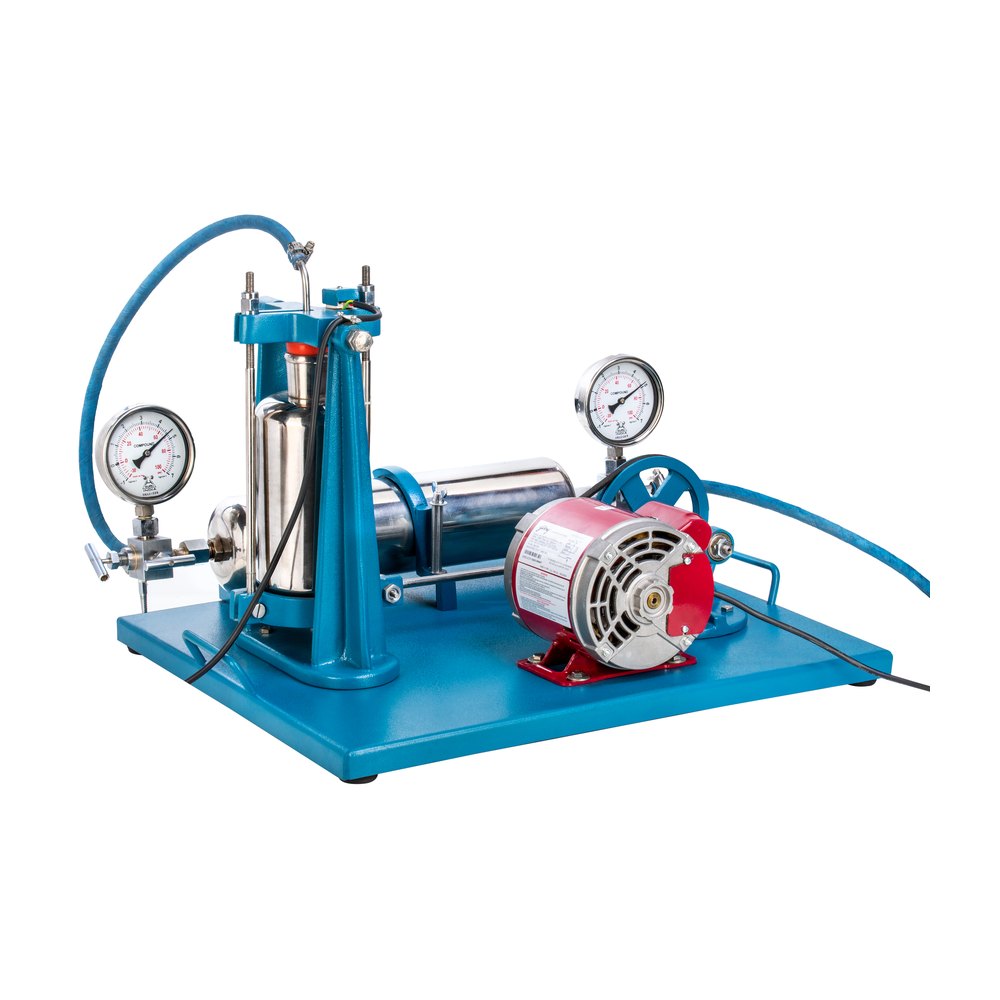

PT-145 CATALYTIC HYDROGENATION APPARATUS Low Pressure shaker type (model CH-500 Glass).
A compact unit for chemical reactions which require the agitation of solution in the presence of a gas under pressure upto 60 lbs per square inch. It is recommended for the numerous reduction and condensations which arise in the synthesis and investigation of organic compounds which are accomplished conveniently by treatment with hydrogen in the presence of a suitable catalyst.

Model PT-145 PT-150 PT-155
Motor unit H.P. 0.25

1440 R.P.M

230 VOLTS

H.P. 0.25

1440 R.P.M

230 VOLTS

H.P. 0.25

1440 R.P.M

230 VOLTS

Reaction bottle material SS 316 grade SS 316 grade SS 316 grade
Reaction bottle capacity 500 ml 1000 ml 2000 ml
Supply tank material SS 316 grade SS 316 grade SS 316 grade
Supply tank capacity 4 litres 5 litres 5 litres
Pressure gauge 0 to 7 kg/cm² 0 to 7 kg/cm² 0 to 7 kg/cm²
Body Mild steel powder coated Mild steel powder coated Mild steel powder coated
Dimensions (L×W×H) 30 X 25 X 17 inch 34 X 27 X 18 inch 34 X 27 X 20 inch
Weight 60 Kg 70 Kg 75 Kg
Power Supply 230V, 50Hz, 1 phase 230V, 50Hz, 1 phase 230V, 50Hz, 1 phase
Working temperaure Ambient to 100°c Ambient to 100°c Ambient to 100°c
Gas inlet assembly 2 way 2 way 2 way
Gas connecting assembly   to reaction vessel 3 way 3 way 3 way
