Model Cat : PT-90
| Description |
|---|
| PHOTO CHEMICAL REACTOR (Srinivasan–Griffin–Rayonet type) for UV-induced photochemical reactions with continuous stirring. |
| Technical Specification | |
|---|---|
| UV source | 8 ultraviolet tubes in heavy metal enclosure with polished SS reflector |
| Features | Two clamping rods for glass reactor, base cooling fan, magnetic stirrer with 2 PTFE rotors |
| Accessories | PT-92 quartz tube, PT-93 borosilicate tube (B-19, 50 cm x 25 mm) |
| HSN Code | 90275090 |
| Models Available | |
|---|---|
| Cat. No. | Description |
| PT-90 | Photo chemical reactor |
| PT-96 | Reactor assembly, quartz probe, 100/200 ml |
| PT-97 | Reactor assembly, all borosilicate |
| PT-98 | Quartz probe with B-45 cone & jacket |
| PT-100 | UV lamp 125 W with choke |
Description

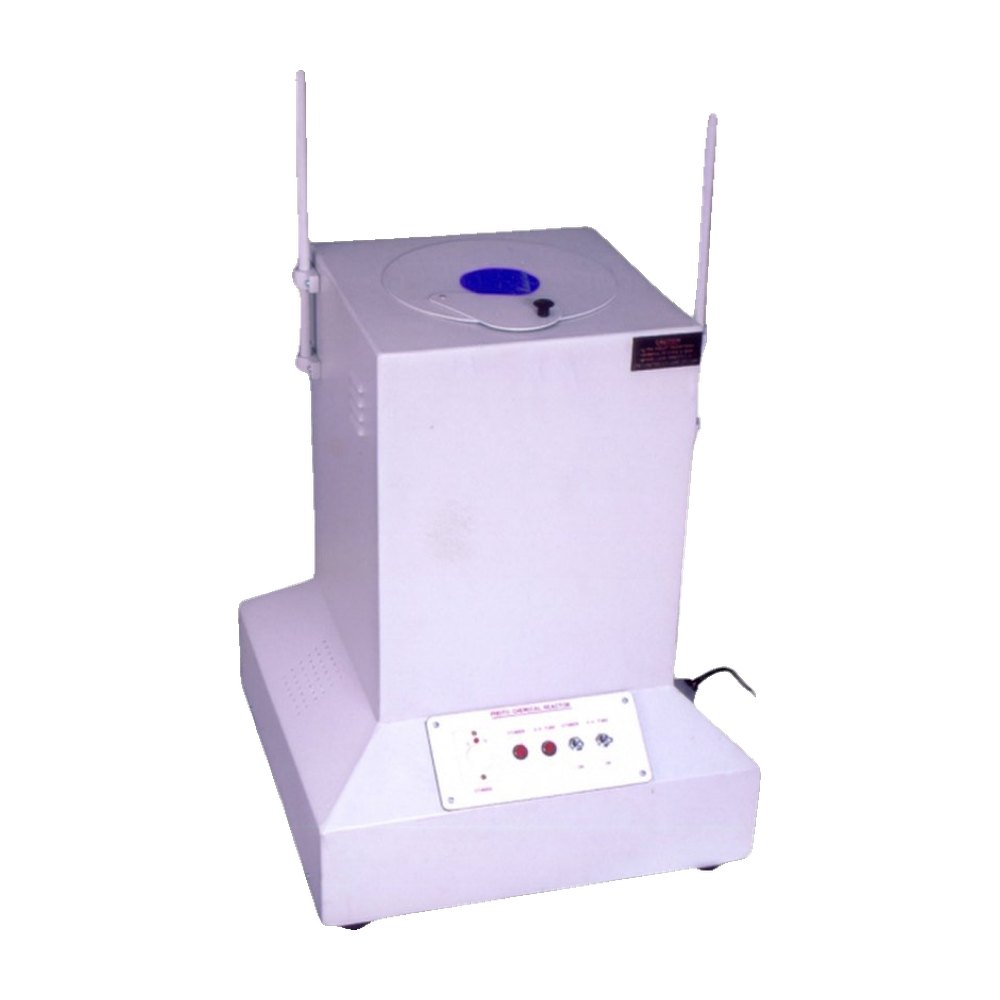

The PT-90 photochemical reactor (Srinivasan–Griffin–Rayonet type) from Popular Traders, Ambala carries out UV-induced photochemical reactions with continuous stirring. Eight UV tubes in a polished stainless steel reflector surround the reaction vessel.
Key features
- 8 ultraviolet tubes in a heavy metal enclosure with polished SS reflector
- Two clamping rods for the glass reactor
- Base cooling fan
- Magnetic stirrer with 2 PTFE rotors
- Quartz and borosilicate reaction tubes available
Models available
- PT-90: photochemical reactor
- PT-92 / PT-93: quartz / borosilicate tube (B-19, 50 cm x 25 mm)
- PT-96: reactor assembly with quartz probe, 100/200 ml
- PT-97: reactor assembly, all borosilicate
- PT-98: quartz probe with B-45 cone and jacket
- PT-100: UV lamp 125 W with choke
Applications
- Photochemistry research
- Organic synthesis using UV light
- Photocatalysis and degradation studies
- University and R&D labs
Which model should I choose?
Use a quartz tube or probe for short-wave UV reactions; borosilicate is suitable for longer wavelengths.
Made in India by Popular Traders
Popular Traders has made laboratory equipment in Ambala, Haryana since 1942. We are ISO 9001:2015 certified, ZED Silver certified, MSME registered and an approved supplier on GeM. Most models are dispatched within about 1 week of your order. Send us an enquiry for the price and warranty terms for the model you need. Custom sizes and OEM supply are available on request.
Frequently asked questions
What type of reactor is the PT-90?
A Srinivasan–Griffin–Rayonet type photochemical reactor.
How many UV tubes does it have?
8 UV tubes with a polished SS reflector.
Does it stir the reaction?
Yes, it has a magnetic stirrer with 2 PTFE rotors.
Which reaction vessels are available?
Quartz (PT-92) and borosilicate (PT-93) tubes, and reactor assemblies PT-96 to PT-98.
Is a 125 W UV lamp available?
Yes, PT-100 with choke.
QUALITY & CERTIFICATIONS
ISO 9001:2015 certified • Registered on GeM • ZED certified • Make in India
