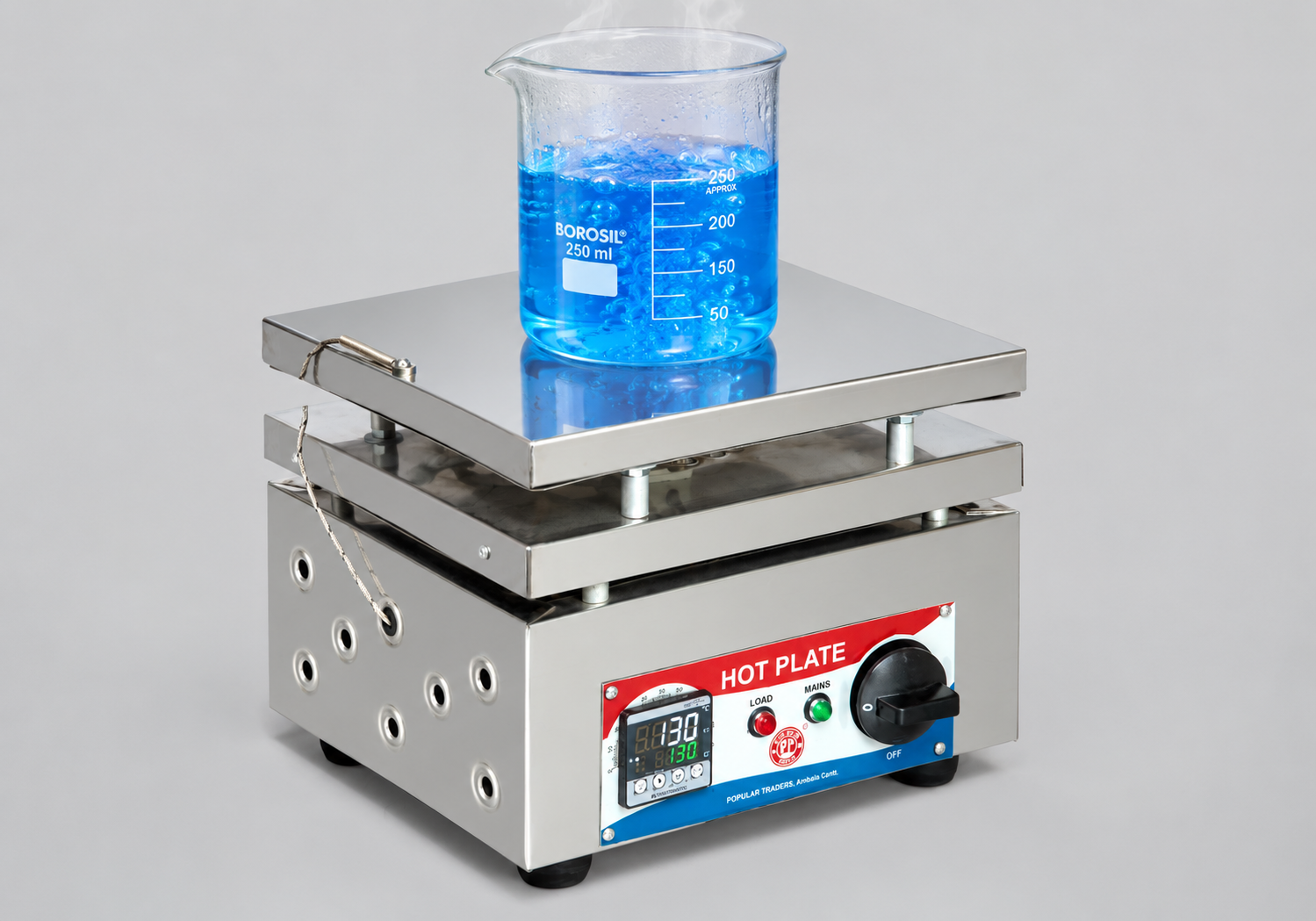

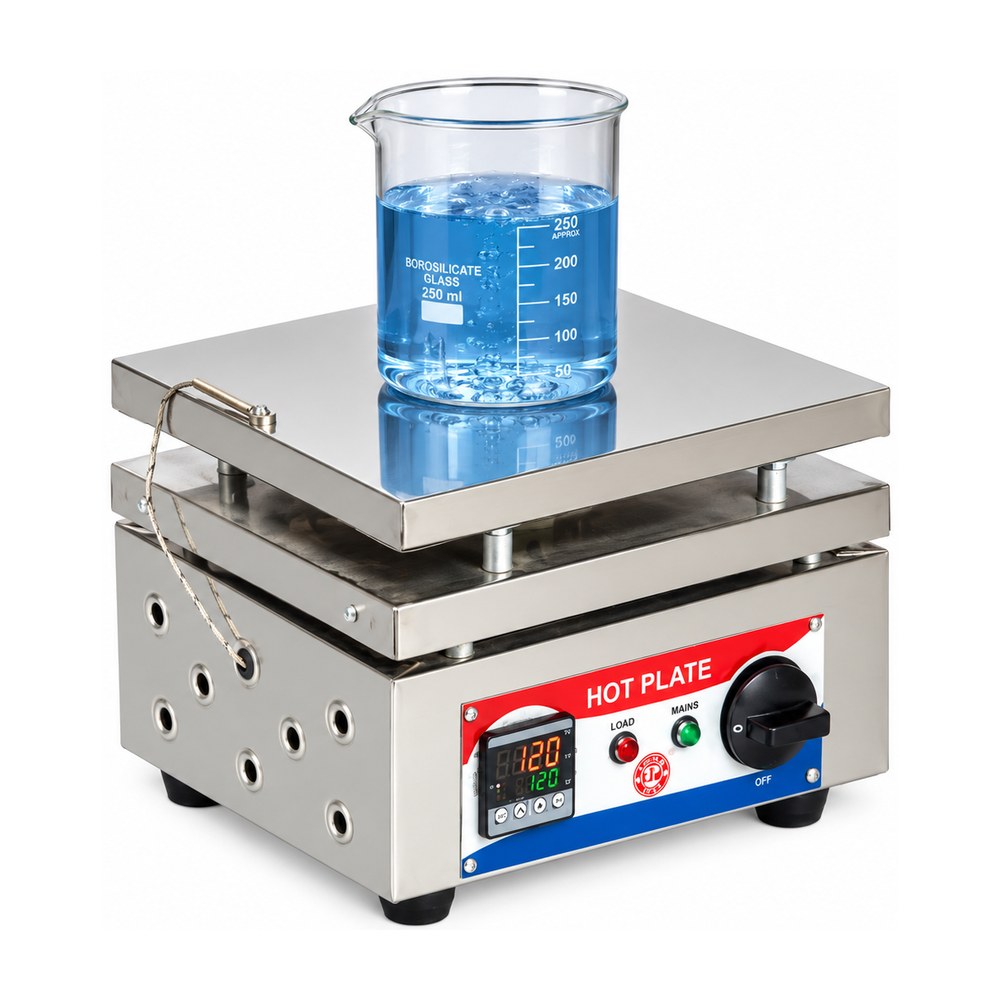

Model Cat : PT-330
| Description |
|---|
| HOT PLATE RECTANGULAR for heating multiple vessels, sample preparation and evaporation. |
| Technical Specification | |
|---|---|
| Temperature | Up to 300°C, accuracy ±0.5°C, uniformity ±1°C |
| Plate | SS 304 / cast iron |
| Body | Powder-coated MS or SS 304 |
| Power | 220 V, 50 Hz |
| Optional | IQ, OQ & PQ, NABL calibrated controller |
| Models Available | |||
|---|---|---|---|
| Plate (mm) | kW | Energy Regulator | Digital |
| 250 x 300 x 150 | 1 | PT-330/05 | PT-330/25 |
| 250 x 400 x 150 | 1 | PT-330/10 | PT-330/30 |
| 300 x 450 x 150 | 2 | PT-330/15 | PT-330/35 |
| 450 x 600 x 150 | 3 | PT-330/20 | PT-330/40 |
Description
The PT-330 rectangular hot plate from Popular Traders, Ambala heats several vessels at once up to 300°C, for sample preparation, digestion and evaporation. It is available with an energy regulator or a digital controller in four plate sizes.
Key features
- Temperature up to 300°C, accuracy ±0.5°C, uniformity ±1°C
- SS 304 or cast-iron plate
- Energy regulator (PT-330/05 to /20) or digital controller (PT-330/25 to /40)
- Powder-coated MS or SS 304 body; 220 V, 50 Hz
- 1 kW to 3 kW depending on size
- Options: IQ/OQ/PQ, NABL calibrated controller
Models available
- Size 250 x 300 x 150 mm – kW: 1, Energy Regulator: PT-330/05, Digital: PT-330/25
- Size 250 x 400 x 150 mm – kW: 1, Energy Regulator: PT-330/10, Digital: PT-330/30
- Size 300 x 450 x 150 mm – kW: 2, Energy Regulator: PT-330/15, Digital: PT-330/35
- Size 450 x 600 x 150 mm – kW: 3, Energy Regulator: PT-330/20, Digital: PT-330/40
Applications
- Heating several beakers or flasks together
- Acid digestion and sample preparation
- Evaporation of solutions
- Pharmaceutical, food, soil and water labs
Which model should I choose?
Choose the plate size by the number of vessels you heat at once: 250 x 300 mm for a few beakers, up to 450 x 600 mm for large batches. Choose a digital model when you need accurate, repeatable temperature.
Made in India by Popular Traders
Popular Traders has made laboratory equipment in Ambala, Haryana since 1942. We are ISO 9001:2015 certified, ZED Silver certified, MSME registered and an approved supplier on GeM. Most models are dispatched within about 1 week of your order. Send us an enquiry for the price and warranty terms for the model you need. Custom sizes and OEM supply are available on request.
Frequently asked questions
What sizes does the PT-330 come in?
250 x 300, 250 x 400, 300 x 450 and 450 x 600 mm.
What is the maximum temperature?
Up to 300°C.
Is a digital controller available?
Yes, PT-330/25 to PT-330/40 have a digital controller.
What is the power rating?
1 kW for the two smaller sizes, 2 kW for 300 x 450 mm and 3 kW for 450 x 600 mm.
Is it suitable for acid digestion?
Yes, it is widely used for digestion and sample preparation.
QUALITY & CERTIFICATIONS
ISO 9001:2015 certified • Registered on GeM • ZED certified • Make in India
