Model Cat : PT-350
| Description |
|---|

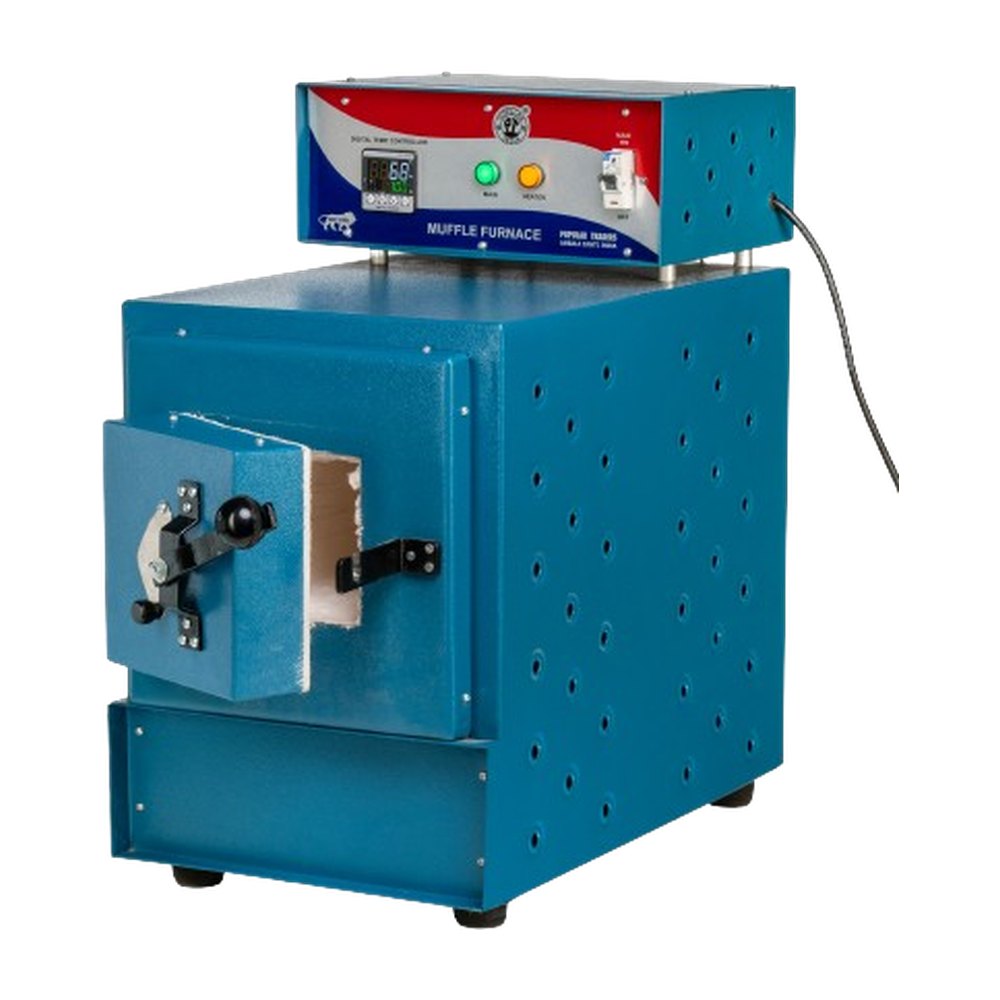

| PT-350 MUFFLE FURNACE for ashing, heat treatment and high-temperature testing up to 900°C in research labs, industry and R&D centres. |
| Technical Specification | |
|---|---|
| Temperature | Up to 900°C (continuous) |
| Heating | KANTHAL wire element, K-type thermocouple |
| Construction | Sillimanite muffle, insulated swing door, MS powder-coated or SS 304 body |
| Controller | PID, LED display of SV & PV, auto-tuning; 220 V / 50 Hz |
| Supplied with | Safety gloves, crucible tong, operating manual |
| Optional | Data logger (USB), vent hole, IQ/OQ/PQ, stabilizer, NABL calibration |
| Models Available | |||||
|---|---|---|---|---|---|
| Size (mm) | Litre | kW | MS Thermostatic |
MS Digital |
SS 304 Digital (GMP) |
| 100 x 100 x 225 | 2 | 1.6 | PT-350/05 | PT-350A/05 | PT-350B/05 |
| 125 x 125 x 250 | 4 | 2.0 | PT-350/10 | PT-350A/10 | PT-350B/10 |
| 150 x 150 x 300 | 6 | 3.0 | PT-350/15 | PT-350A/15 | PT-350B/15 |
| 200 x 200 x 300 | 12 | 3.5 | PT-350/20 | PT-350A/20 | PT-350B/20 |
Description
The PT-350 muffle furnace from Popular Traders, Ambala reaches up to 900°C for ashing, heat treatment and high-temperature testing. A KANTHAL wire element and K-type thermocouple with PID control give stable, repeatable temperatures in research labs, industry and R&D centres.
Key features
- Temperature up to 900°C continuous
- KANTHAL wire heating element with K-type thermocouple
- Sillimanite muffle with insulated swing door
- PID controller with LED display of set and actual values, auto-tuning; 220 V, 50 Hz
- MS powder-coated or SS 304 (GMP) body
- Supplied with safety gloves, crucible tong and operating manual
Models available
- Size 100 x 100 x 225 mm – litres: 2, kW: 1.6, MS thermostatic: PT-350/05, MS digital: PT-350A/05, SS 304 digital (GMP): PT-350B/05
- Size 125 x 125 x 250 mm – litres: 4, kW: 2.0, MS thermostatic: PT-350/10, MS digital: PT-350A/10, SS 304 digital (GMP): PT-350B/10
- Size 150 x 150 x 300 mm – litres: 6, kW: 3.0, MS thermostatic: PT-350/15, MS digital: PT-350A/15, SS 304 digital (GMP): PT-350B/15
- Size 200 x 200 x 300 mm – litres: 12, kW: 3.5, MS thermostatic: PT-350/20, MS digital: PT-350A/20, SS 304 digital (GMP): PT-350B/20
Applications
- Ash content determination in food, feed, pharma and coal
- Loss on ignition and gravimetric analysis
- Heat treatment of small metal parts
- Ceramic and glass testing
- Cement, soil and environmental labs
Which model should I choose?
Four chamber sizes from 2 to 12 litres are available, each with a thermostat (PT-350), a digital controller in an MS body (PT-350A) or a digital controller in an SS 304 GMP body (PT-350B). For temperatures up to 1200°C, see the PT-352 grooved muffle furnace.
Made in India by Popular Traders
Popular Traders has made laboratory equipment in Ambala, Haryana since 1942. We are ISO 9001:2015 certified, ZED Silver certified, MSME registered and an approved supplier on GeM. IQ/OQ/PQ documentation and NABL calibration can be supplied for regulated pharmaceutical and food laboratories. Most models are dispatched within about 1 week of your order. Send us an enquiry for the price and warranty terms for the model you need. Custom sizes and OEM supply are available on request.
Frequently asked questions
What is the maximum temperature of the PT-350 muffle furnace?
Up to 900°C continuous. For 1200°C, choose the PT-352.
What is supplied with it?
Safety gloves, crucible tong and an operating manual.
What sizes are available?
2, 4, 6 and 12 litre chambers.
Which heating element is used?
A KANTHAL wire element with a K-type thermocouple.
What options are available?
USB data logger, vent hole, IQ/OQ/PQ, stabilizer and NABL calibration.
QUALITY & CERTIFICATIONS
ISO 9001:2015 certified • Registered on GeM • ZED certified • Make in India
