Model Cat : PT-400
| Description |
|---|
| HOT AIR OVEN for drying, sterilisation and heat treatment of glassware and samples. |
| Technical Specification | |
|---|---|
| Temperature | Ambient +10 to 250°C (300°C on PT-400E), ±0.5°C, uniformity ±1°C |
| Controller / Sensor | Thermostat or PID digital; RTD PT100 |
| Construction | Double walled, SS 304 inner, MS powder-coated / SS 304 outer, SS perforated shelves |
| Air / Power | Motor-driven blower, fume vent; 220 V, 50 Hz |
| Optional | Data logger, over-temp. thermostat, castors, IQ/OQ/PQ |
| Models Available | |||||
|---|---|---|---|---|---|
| Size (mm) | L | Shelves | MS Thermostat | MS Digital | SS 304 Digital |
| 300 x 300 x 300 | 27 | 1 | PT-400/05 | PT-400A/05 | PT-400B/05 |
| 355 x 355 x 355 | 45 | 2 | PT-400/10 | PT-400A/10 | PT-400B/10 |
| 455 x 455 x 455 | 95 | 2 | PT-400/15 | PT-400A/15 | PT-400B/15 |
| 455 x 455 x 605 | 125 | 2 | PT-400/20 | PT-400A/20 | PT-400B/20 |
| 605 x 605 x 605 | 220 | 2 | PT-400/25 | PT-400A/25 | PT-400B/25 |
| 605 x 605 x 910 | 330 | 3 | PT-400/30 | PT-400A/30 | PT-400B/30 |
Description

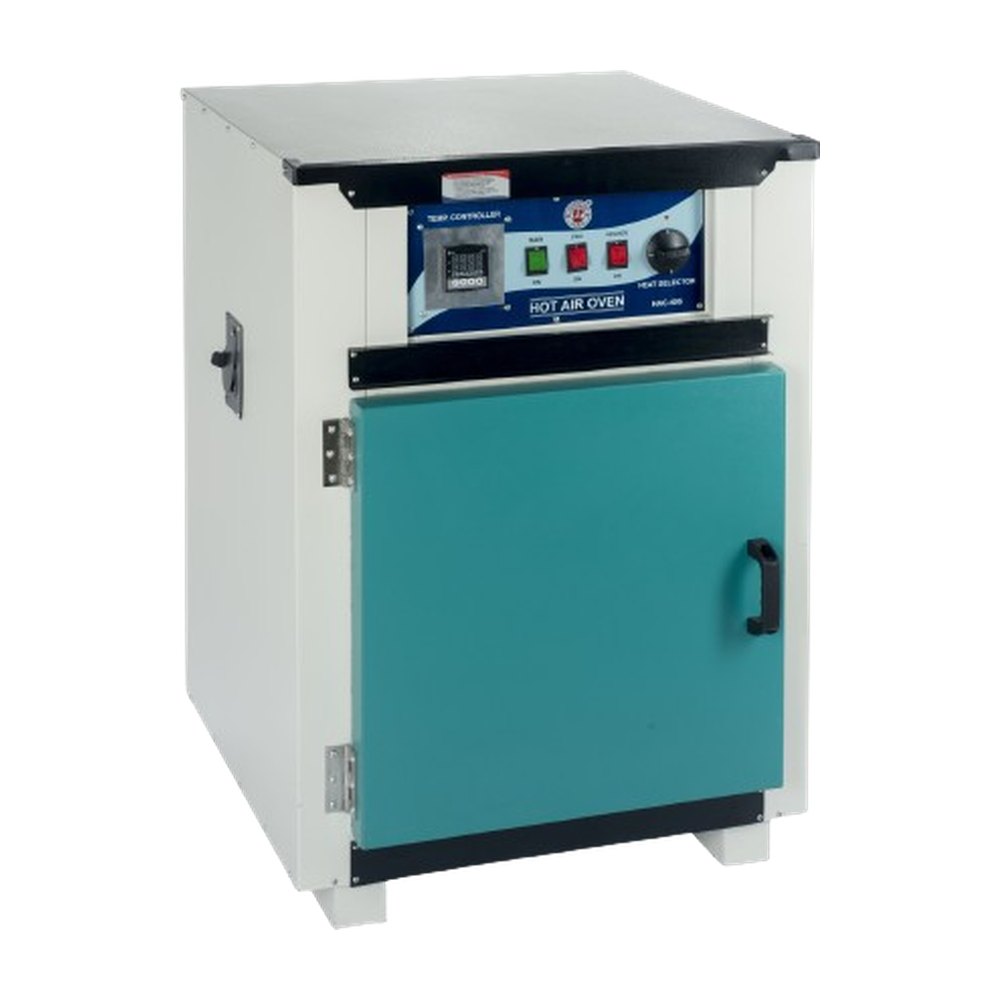

The PT-400 hot air oven from Popular Traders, Ambala is used for drying, sterilising and heat-treating glassware, samples and components. A motor-driven blower circulates hot air evenly from 10°C above ambient up to 250°C (300°C on the PT-400E), with ±0.5°C control.
Key features
- Temperature range ambient +10°C to 250°C (300°C on PT-400E), accuracy ±0.5°C, uniformity ±1°C
- Thermostat or PID digital controller, RTD PT100 sensor
- Double-walled cabinet: SS 304 inner, MS powder-coated or SS 304 outer
- SS perforated shelves; motor-driven blower and fume vent
- 220 V, 50 Hz
- Options: data logger, over-temperature safety thermostat, castors, IQ/OQ/PQ
Models available
- Size 300 x 300 x 300 mm – litres: 27, Shelves: 1, MS Thermostat: PT-400/05, MS Digital: PT-400A/05, SS 304 Digital: PT-400B/05
- Size 355 x 355 x 355 mm – litres: 45, Shelves: 2, MS Thermostat: PT-400/10, MS Digital: PT-400A/10, SS 304 Digital: PT-400B/10
- Size 455 x 455 x 455 mm – litres: 95, Shelves: 2, MS Thermostat: PT-400/15, MS Digital: PT-400A/15, SS 304 Digital: PT-400B/15
- Size 455 x 455 x 605 mm – litres: 125, Shelves: 2, MS Thermostat: PT-400/20, MS Digital: PT-400A/20, SS 304 Digital: PT-400B/20
- Size 605 x 605 x 605 mm – litres: 220, Shelves: 2, MS Thermostat: PT-400/25, MS Digital: PT-400A/25, SS 304 Digital: PT-400B/25
- Size 605 x 605 x 910 mm – litres: 330, Shelves: 3, MS Thermostat: PT-400/30, MS Digital: PT-400A/30, SS 304 Digital: PT-400B/30
Applications
- Drying and sterilising glassware
- Moisture determination and drying of samples
- Pharmaceutical, food and chemical QC labs
- Curing and heat-treatment of small components
- Teaching and research laboratories
Which model should I choose?
Six sizes from 27 to 330 litres are available. Each comes with a thermostat (PT-400), a digital controller in an MS body (PT-400A) or a digital controller in an SS 304 body (PT-400B). Choose a digital model for accurate, repeatable drying, and SS 304 for GMP areas. For heat-sensitive materials, see the PT-415 vacuum oven.
Made in India by Popular Traders
Popular Traders has made laboratory equipment in Ambala, Haryana since 1942. We are ISO 9001:2015 certified, ZED Silver certified, MSME registered and an approved supplier on GeM. IQ/OQ/PQ documentation and NABL calibration can be supplied for regulated pharmaceutical and food laboratories. Most models are dispatched within about 1 week of your order. Send us an enquiry for the price and warranty terms for the model you need. Custom sizes and OEM supply are available on request.
Frequently asked questions
What is the maximum temperature of the PT-400 hot air oven?
250°C, or 300°C on the PT-400E model.
What sizes are available?
27, 45, 95, 125, 220 and 330 litres.
Does it have air circulation?
Yes, a motor-driven blower circulates the air for uniform temperature.
Is a digital controller available?
Yes, the PT-400A and PT-400B models have a PID digital controller with RTD PT100 sensor.
Which oven should I use for heat-sensitive samples?
Use the PT-415 vacuum oven, which dries at lower temperature under vacuum.
